BTTM
Brake & Tyre Temperature Monitor for motorsport. Make temperature data easy to capture and review for vehicle R&D and setup decisions.
Live gauge display
Remote telemetry monitoring
Track-ready hardware
CAN / IR sensors

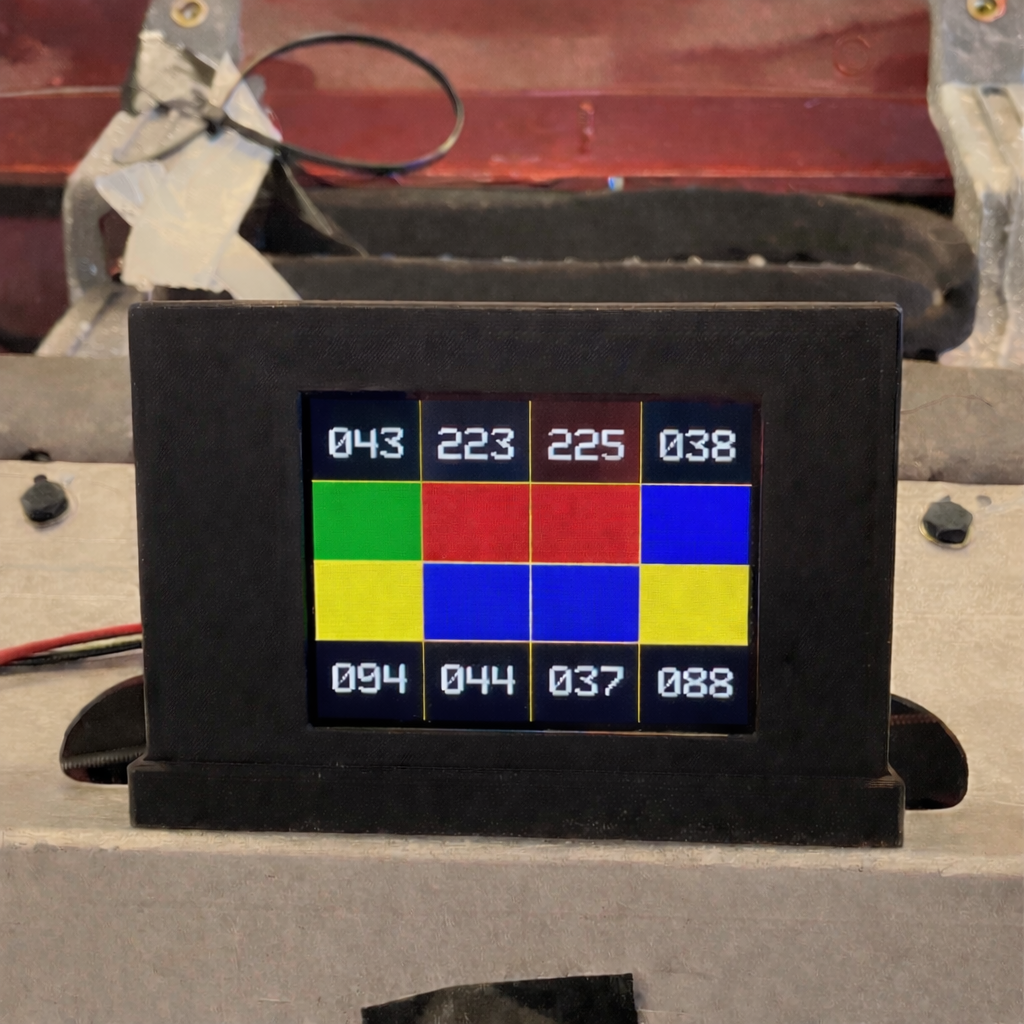

Live temperature cockpit monitor
A 4x4 grid for the simplest peripheral vision temperatures awareness.
Each 2×2 block represents one corner of the car, showing the tire and brake temperatures with both numeric values and a color-coded heat visualization.
- Blue = Cold
- Green = Optimal
- Yellow = Sub-Optimal
- Red = Hot
- Flashing Red = Overheating
What it does
- Measures brake and tyre temperatures in real time.
- Clear on-device visualisation.
- Session logging for post-run analysis.
- Designed for harsh motorsport environments.
Use cases
- Brake cooling and balance validation.
- Tyre warm-up behaviour analysis.
- Early detection of uneven heating.
Technical specifications
| Inputs | Infrared temperature sensors |
|---|---|
| Logging | On-device and remote Pit access |
| Display | Live temperature grid |
| Power | Vehicle Battery Supply (3-35V DC) |
| Interfaces | CAN / Wi-Fi |
| Environment | Automotive / motorsport |

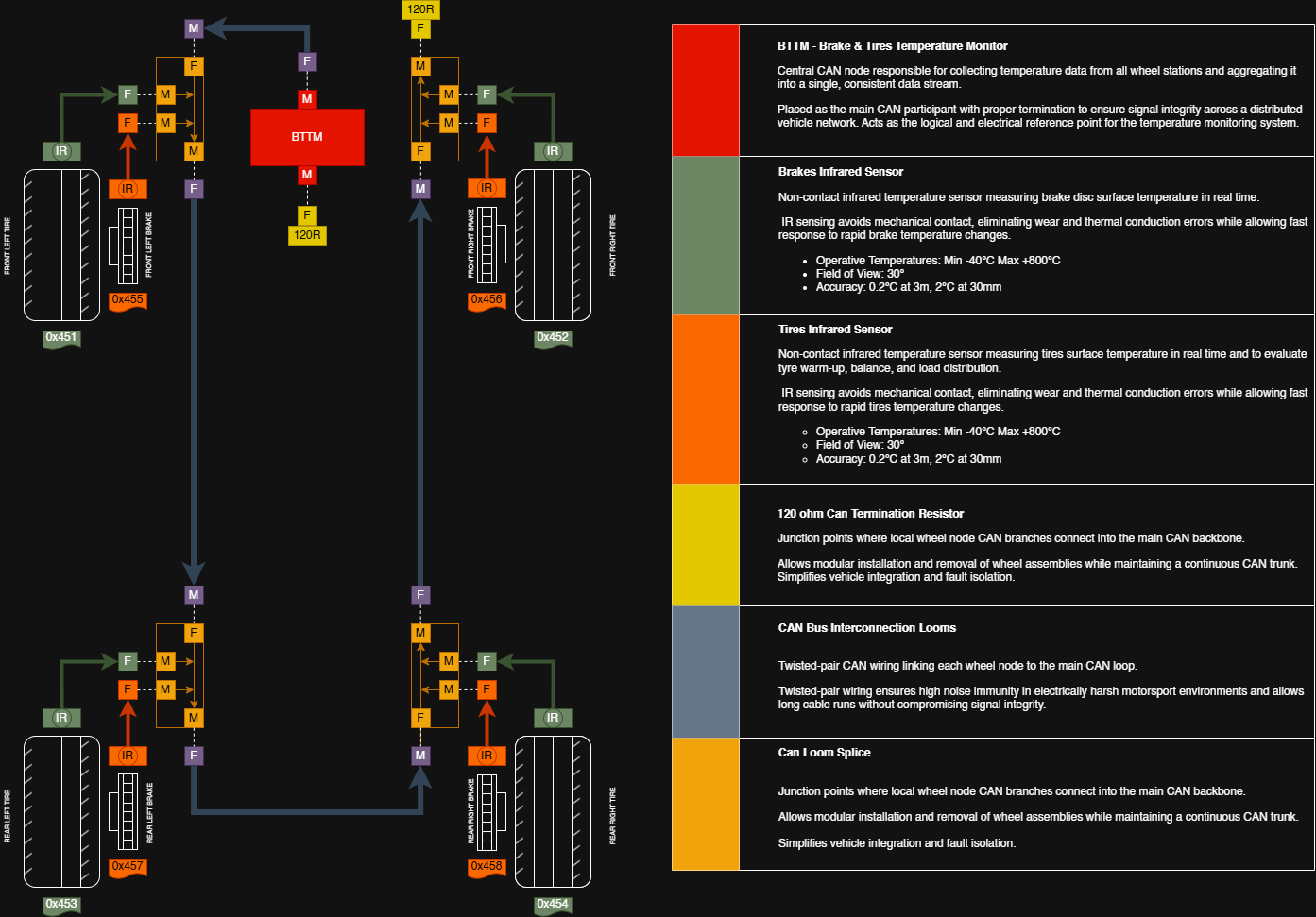

CAN topology overview
